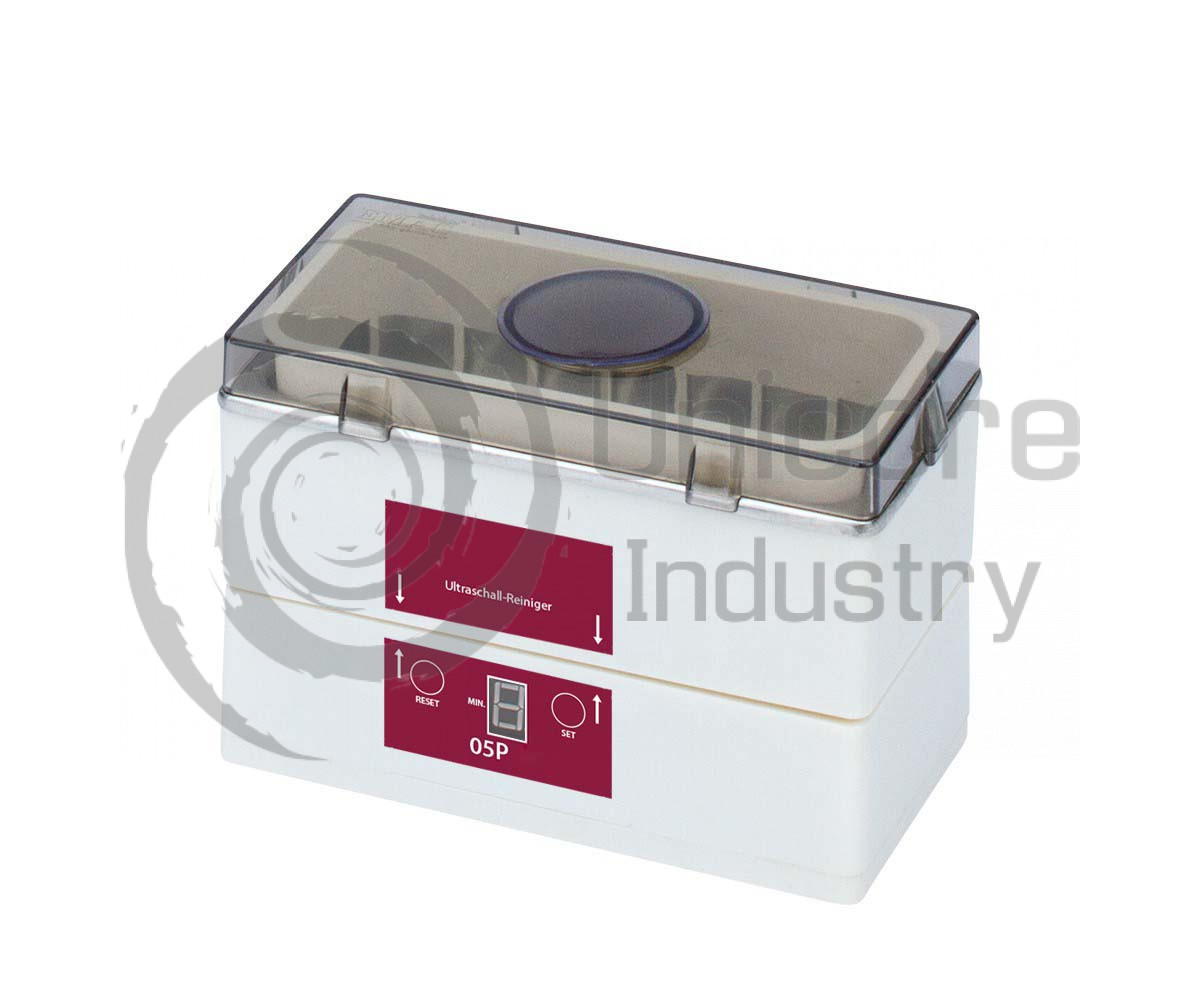

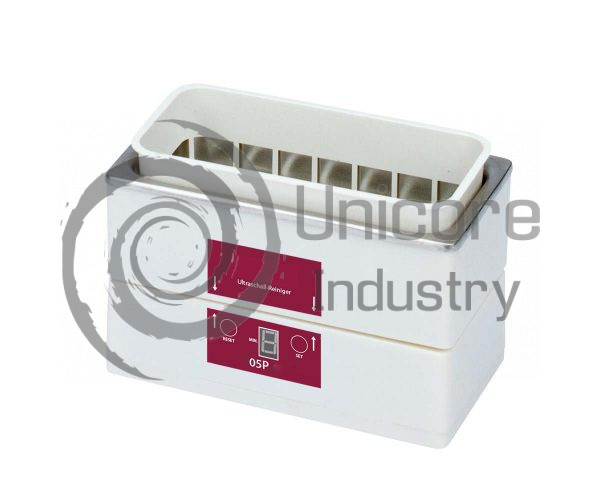

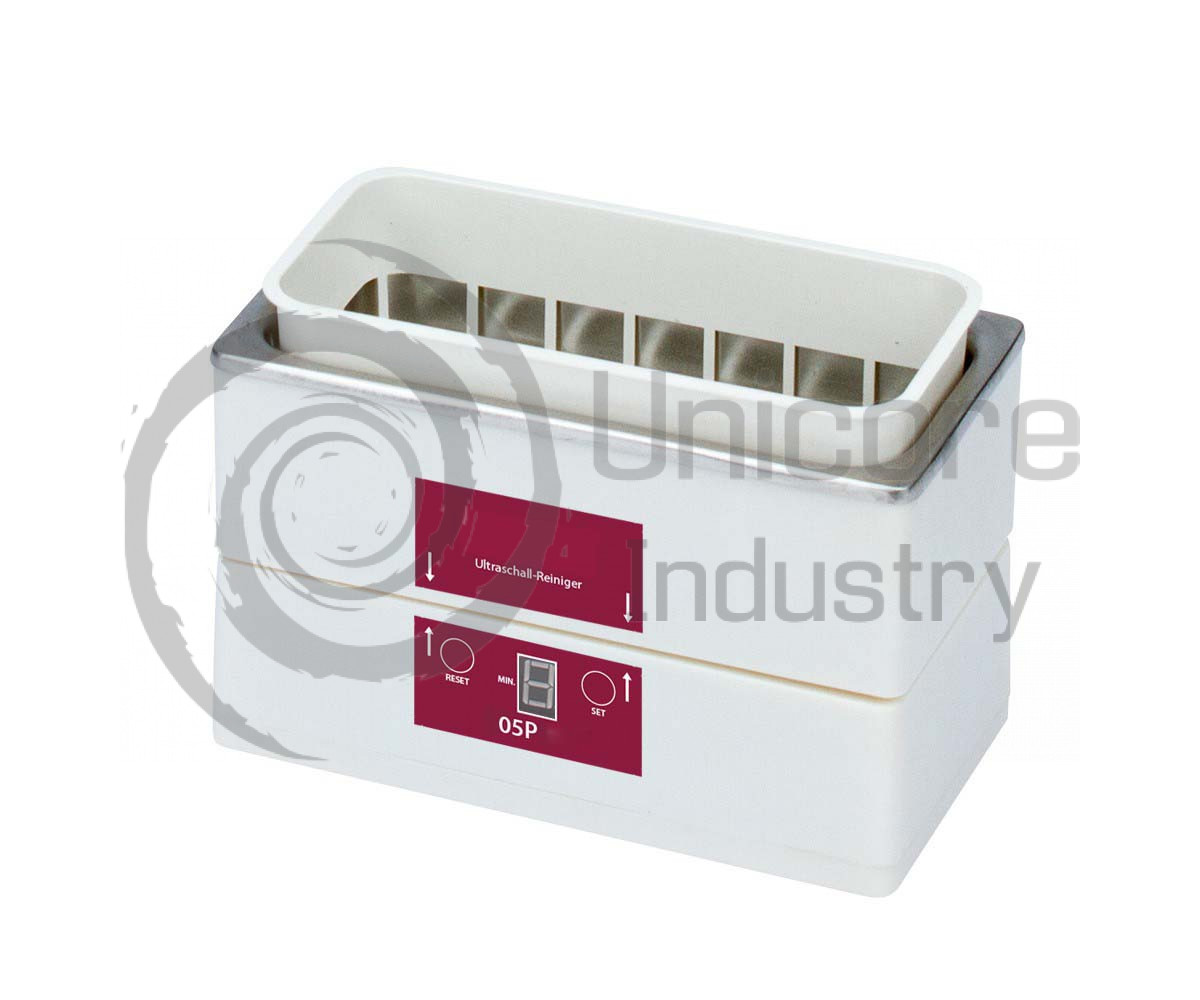

610 0.5L Ultrasonic Cleaner with Timer
Compact device with removable stainless steel oscillating tank and ABS plastic housing.
Timer 1-9 min. without continuous operation.
Dimensions:
Tackle outside (L x W x H): 190 x 100 x 124 mm
Tub Indoor (L x W x H): 175 x 80 x 40 mm
Basket Indoor (L x W x H): 167 x 74 x 48 mm
Basket mesh size: 19 x 20 mm
Content:
When content: 0.5 litres
Filling volume: 0.425 litres
Equipment:
Internal tank: Stainless steel 1.4301
Housing: ABS plastic
Degree of protection: IP 20
Drain tap: No
Timer: 1-9 min
Technical specifications:
Transducers: 1 flat vibrator
HF generator: overload protected, constant power
Modes: Easy half-wave
Operating frequency: about 42 kHz
Ultrasonic power: max. 50 Watt
Power supply: 50/60 Hz
Power supply: 220 – 240 V
Accessories:
Plastic basket “- protects cleaned and transducer tank -”
Basket Indoor (L x W x H): 155 x 80 x 45 mm
Basket mesh size: mm
Hole Cover Plastic
(For cleaning small parts)
Dimensions
Tank volume 0,5 liter
Work capacity 0,425 liter
Outer dimensions of tank (LxWxH) 190x100x124 mm
Inner dimensions of tank (LxWxH) 175x80x40 mm
Basket dimensions (LxWxH) 167x75x48 mm
Basket mesh 19 x 20 mm
Timing 1-9 min.
Technical data
Ultrasound power max. 50 Watt
operating frequency 49 kHz
Mains voltage 50/60 Hz
Mains connection 220 – 240 V
Oscillating system 1 Wide beam transducer
HF- generator Overload protection, power Stability
Operating mode Simple half-wave
Features
Tank: stainless steel
Case: ABS plastic
Additional information
